In the field of industrial materials, carbon steel plates have become the mainstream material due to their high strength, good durability, and wide range of applications. Among them, patterned carbon steel plates (also known as patterned steel sheets) have attracted much attention due to their unique design and functional advantages. Jindalai Steel Group Co., Ltd. is a leading manufacturer in this field, providing high-quality patterned carbon steel plates to meet various application needs. This article aims to explore the common names, materials, patterns, surface treatments, and price factors of patterned carbon steel plates.
Common names for carbon steel checkered plates
Carbon steel checkered plates typically have several names, including:
Patterned steel sheet: This term covers all steel sheets with a specific design or pattern.
Anti-slip plates: These anti-slip plates are designed to provide friction and prevent slipping, making them ideal for use on floors and walkways.
Textured Plates: This name highlights the surface texture of the plate, and its design and purpose may vary.
Although these terms are often used interchangeably, it is important to note that they may refer to specific applications or characteristics of the board material.
Commonly Used Materials for Carbon Steel Patterned Plates
For carbon steel checkered plates, the most commonly used materials are Q235B and Q355B. These two materials have different properties, making them suitable for different applications:
Q235B: This is a low-carbon structural steel with good weldability and machinability. Due to its excellent strength-to-weight ratio, it is commonly used in construction and manufacturing. Q235B is ideal for applications requiring medium strength.
Q355B: This is a high-strength structural steel with superior mechanical properties compared to Q235B. It is commonly used in heavy-duty applications such as bridges and high-load structures. Q355B is the preferred choice when higher strength and durability are required.
The choice between Q235B and Q355B depends on the specific requirements of your project, including load-bearing capacity, environmental conditions, and budget constraints.
Common patterns on carbon steel checkered plates
Carbon steel checkered plates come in a variety of patterns, each designed for a specific application. Some of the most common patterns include:
Lentinel-shaped:This texture consists of small, round bumps, providing excellent slip resistance. It is commonly used in floor paving applications where high slip resistance is required.

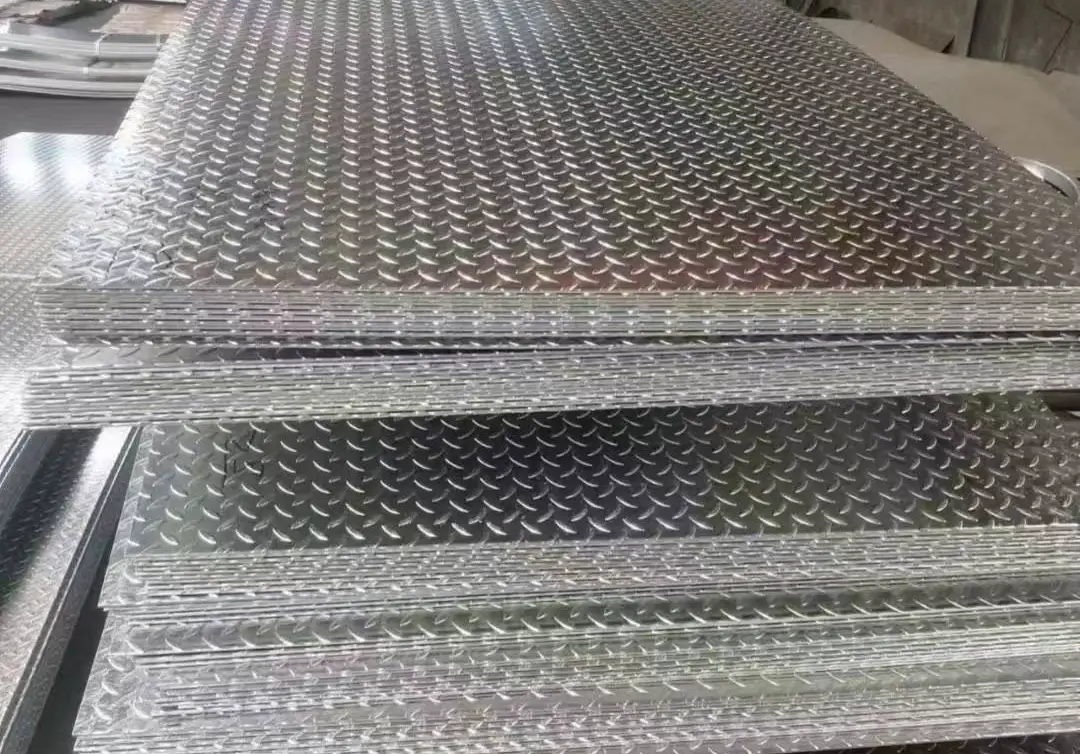

Diamond Pattern: The diamond pattern is one of the most popular designs for checkered plates. Its raised surface provides good grip and is often used in industrial settings, ramps, and sidewalks.
Round bean shape: This pattern consists of rounded bumps, which are both beautiful and non-slip, and are often used for decorative purposes.
Five-rib pattern: This pattern consists of five parallel raised ribs. It is designed for heavy-duty applications, providing superior traction and load-bearing capacity.
Each pattern has its own unique characteristics, so it is crucial to select the appropriate pattern based on the intended use of the carbon steel patterned sheet.
Default Surface Treatment of Carbon Steel Patterned Plate
The default surface treatment for carbon steel checkered plates varies depending on the manufacturer and intended use. However, the most common surface treatments include:
Black: This is the standard surface finish for carbon steel sheets, presenting a raw industrial style. It is often used in applications where aesthetics are not a primary concern.
Pickling: This surface treatment process uses acid to treat steel, removing impurities and oxide scale to achieve a cleaner surface. Pickled steel sheets are commonly used in applications requiring a more refined appearance.
Oil Coating: Oiled steel sheets have a protective oil coating to prevent rust and corrosion. This surface treatment is ideal for applications where the steel sheets will be exposed to humid or harsh environments.
Factors affecting the price of carbon steel checkered plate
Many factors influence the price of carbon steel checkered plates, including:
1. Material Type: The choice between Q235B and Q355B will have a significant impact on cost. Due to its superior performance, Q355B is usually more expensive.
2. Thickness and Size: The size of the sheet plays a crucial role in pricing. Thicker and larger sheets are generally more expensive because they require more material and more complex manufacturing processes.
3. Pattern Design: Some patterns may require more complex manufacturing processes, resulting in higher costs. For example, a diamond pattern may be more expensive than a simpler pattern.
4. Surface Treatment: The chosen surface treatment method also affects the price. Pickling and oiling may incur additional processing costs compared to standard black surface treatment.
5. Market Demand: Fluctuations caused by dynamic changes in the supply and demand of the steel market also affect prices. Economic conditions and global events can both lead to price fluctuations.
in conclusion
Carbon steel checkered plates, including those made of carbon steel with a checkered pattern, are indispensable materials across various industries due to their high strength, durability, and functionality. Understanding the common names, materials, patterns, surface treatments, and pricing factors of these plates will help you make informed decisions when choosing the right product. Jindalai Steel Group Co., Ltd. is a reliable supplier of high-quality carbon steel checkered plates, ensuring you receive the highest quality materials. Whether you need anti-slip plates for enhanced safety or textured plates for improved aesthetics, the right choice can enhance the functionality and design of your application.
