Galvanized corrugated sheet is a type of metal sheet made from galvanized steel sheet as the base material, processed into a continuous corrugated shape through roll forming.It combines the excellent corrosion resistance of galvanized coating with the high strength and rigidity of corrugated structure, making it a lightweight, durable, and economical building material.
In the construction and manufacturing industries, the choice of materials has a significant impact on the durability, aesthetics, and overall performance of a project. Among the many material options, galvanized corrugated steel sheets stand out for their versatility and toughness.
What are the main types of galvanized corrugated steel sheets?
1. Galvanized Corrugated Sheet: This sheet has a wavy shape and is widely used for roofing and walls. Its unique design makes it highly efficient at drainage, making it ideal for various climatic conditions.
2. Galvanized Profiled Sheet: This sheet comes in various shapes, including trapezoidal and sinusoidal. Due to its high strength and aesthetic appeal, it is commonly used in industrial buildings, warehouses, and commercial buildings.
3. Corrugated Sheet: Corrugated sheet is a special type of corrugated sheet characterized by its unique corrugated pattern. They are commonly used in agricultural buildings and warehousing facilities.
4. Corrugated Metal Sheet: Traditional corrugated metal sheets are made of iron, while modern corrugated metal sheets are typically galvanized to enhance their corrosion resistance. They are a popular choice for residential and industrial applications.
What are the different corrugated shapes of galvanized corrugated steel sheets?
Galvanized steel sheets come in various corrugated shapes, each with its own advantages. The most common shapes include:
Sine Curve: This shape features a smooth, continuous curve, a stylish appearance, and excellent drainage performance.
Trapezoidal: Trapezoidal sheets have a flat top and sloping sides, resulting in higher strength and are often used in structural applications.
Corrugated: A classic corrugated design, corrugated sheets are known for their lightweight and easy installation, making them ideal for roofing materials.
Custom Profiles: Jindalai Steel Group Co., Ltd. also offers custom profiles to meet the needs of specific projects, ensuring customers receive the perfect solution.
What are the standard dimensions of galvanized corrugated steel sheets?
Galvanized corrugated steel sheets are available in a variety of standard sizes to meet different application requirements.
| Parameters | Common Specifications/Range |
| Plate thickness | 0.6mm – 1.2mm (common sizes include 0.8mm and 1.0mm) |
| substrate width | 1000mm, 1250mm, etc. |
| Effective width | 699mm, 750mm, 800mm, 850mm, 880mm, etc. |
| Corrugated height | 15mm – 76mm (e.g., YX51, YX76) |
| Wavelength | 60mm – 300mm (varies) |
| Zinc plating amount | Total g/m² (both sides) Z40 – Z275 g/m² (customizable) |
| Common panel types | YX51-233-700, YX76-300-880, YX35-125-750, etc. |
The production process of galvanized corrugated sheets includes the following key steps:
1. Steel Preparation: Select high-quality steel coils and pre-treat them before galvanizing.
2. Hot-Dip Galvanizing: Apply a layer of zinc to the steel surface using a hot-dip galvanizing process to improve its corrosion resistance.

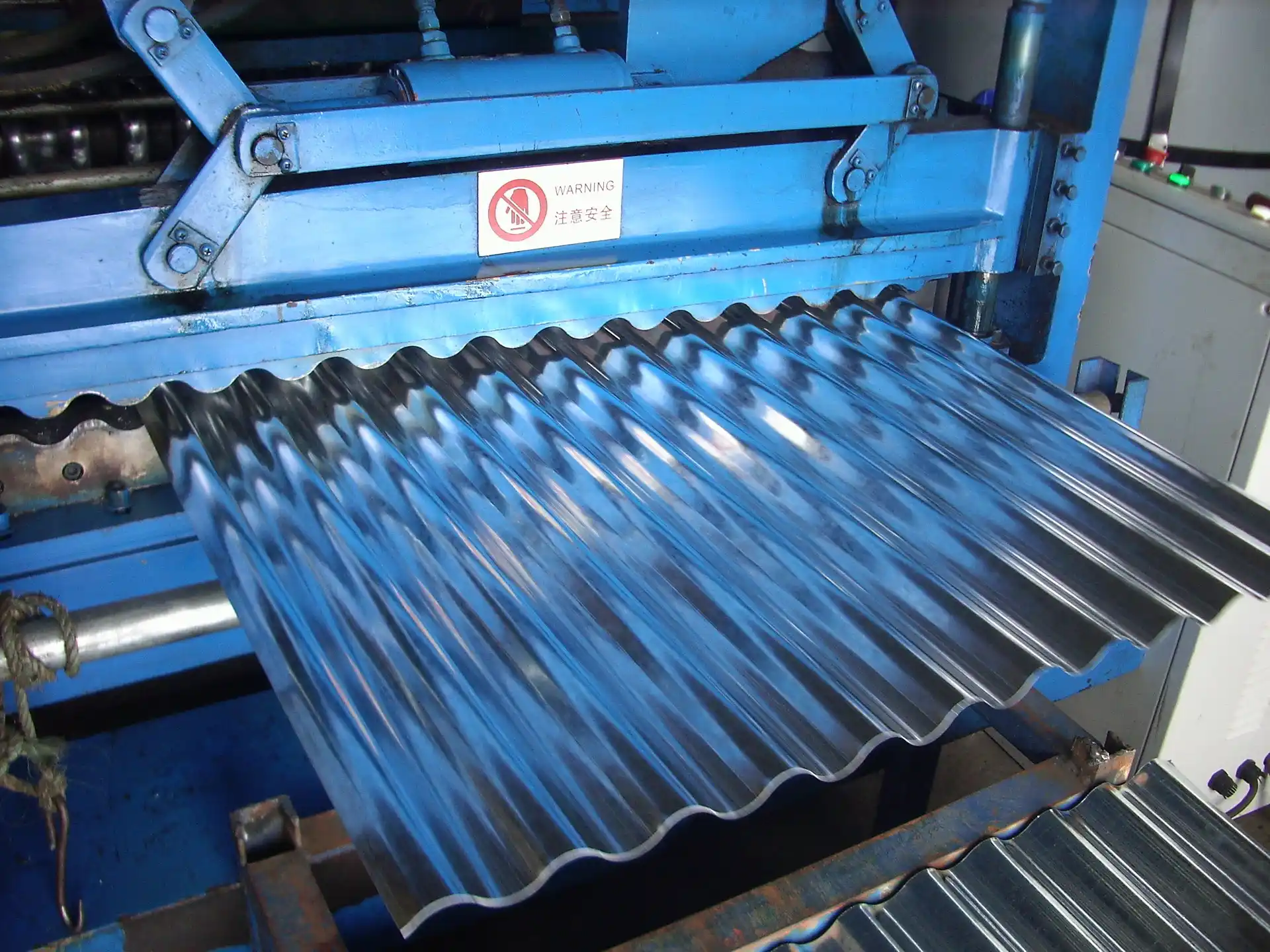

3. Forming: The galvanized steel sheet is then formed into the desired corrugated shape using a corrugating machine.
4. Cutting: Cut the steel sheet to the specified length, ensuring it meets the required dimensions.
5. Quality Control: Each batch of products undergoes rigorous quality inspection to ensure compliance with industry standards and customer specifications.

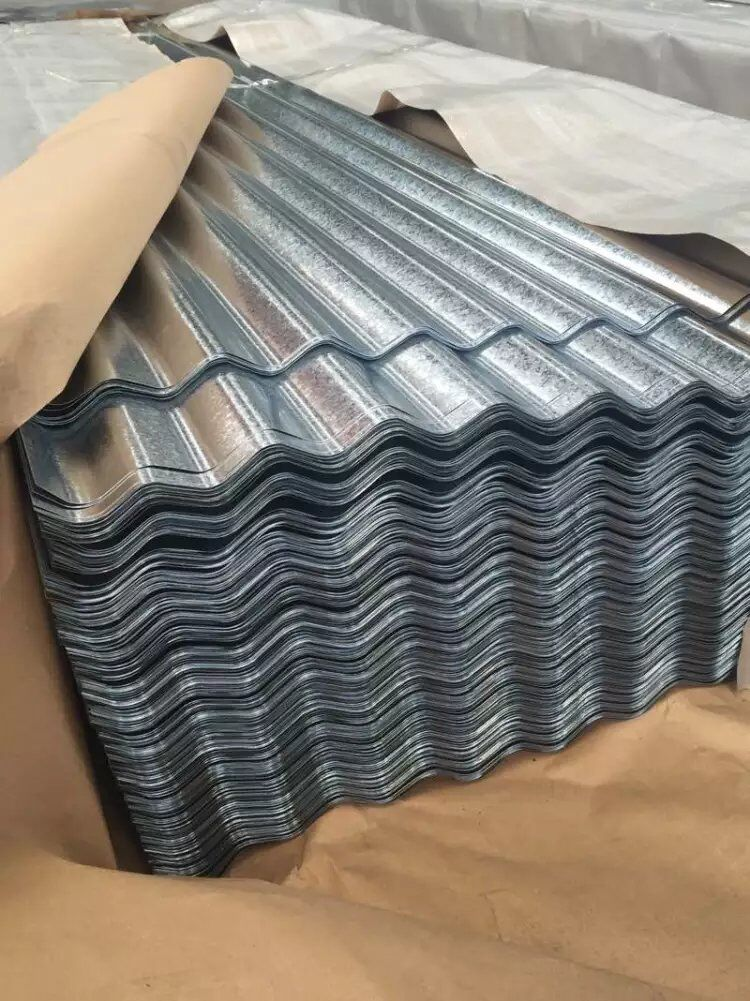

6. Packaging and Transportation: Finally, the steel sheet is securely packaged before transportation, ensuring it arrives undamaged.
What are the main advantages of galvanized corrugated steel sheets?
Corrosion-resistant and durable: The galvanized coating effectively isolates the steel plate from air and moisture, preventing rust and significantly extending its service life.
Lightweight and high-strength: The corrugated design allows for excellent bending and load-bearing capacity while maintaining a light weight, reducing the overall load on the building.
Easy installation: The lightweight material can be directly fixed to purlins with self-tapping screws, resulting in high construction efficiency and shorter construction time.
Weather-resistant and fire-resistant: It can withstand strong winds, rain, snow, and other harsh weather conditions, and the steel plate itself is not easily combustible, possessing excellent fire resistance.
What are the main application areas of galvanized corrugated steel sheets?
Galvanized corrugated steel sheets have a wide range of applications due to their excellent comprehensive performance:
Building Roofing and Walls: Widely used for roofing and wall cladding in industrial plants, warehouses, and large public buildings.
Steel Structure Floors: Used as permanent formwork for composite floor slabs, sharing loads with concrete, in high-rise steel structure buildings.
Simple and Temporary Buildings: Used for prefabricated houses, container houses, carports, temporary fencing, etc.
Agricultural Facilities: Used for constructing greenhouses, farms, agricultural warehouses, etc.
